We made this one budget friendly. It is lightweight and portable; making it great for R/D labs.
It’s sleek, simple, and affordable.

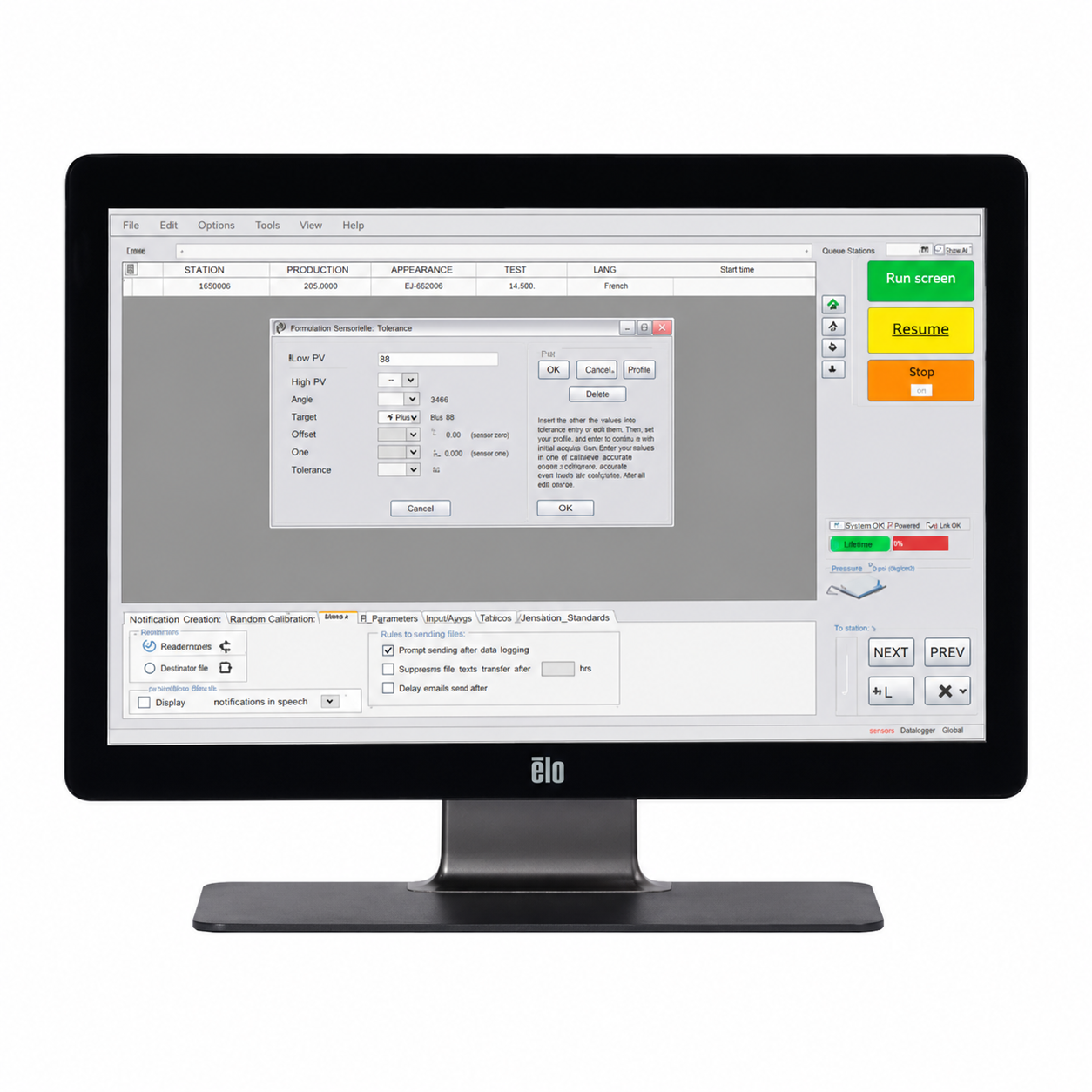

All Rothgreaves series winders run on our EasyWindTM software. This software features multi-segment, multi-speed, and multi-pitch operation, allowing you to create recipes useful for your wire size and material type. The frame dimensions of the standard 1000 Series are 56′′ long x 20′′ deep, with a chuck-to-chuck distance of 27 inches.
1000 SERIES DESKTOP WINDER SPECIFICATIONS & OPTIONS
– Dimensions: 20″D x 56″ WX x 18″ H (Including Handles and Shelf Posts)
– Chuck-to-Chuck Length: 27”
– Power Requirements: 120 VAC
– Max. Spool Size: DIN 100
– Includes Pendant with Joystick for Jog Operation
– Maximum Winding Speed: 1000 RPM

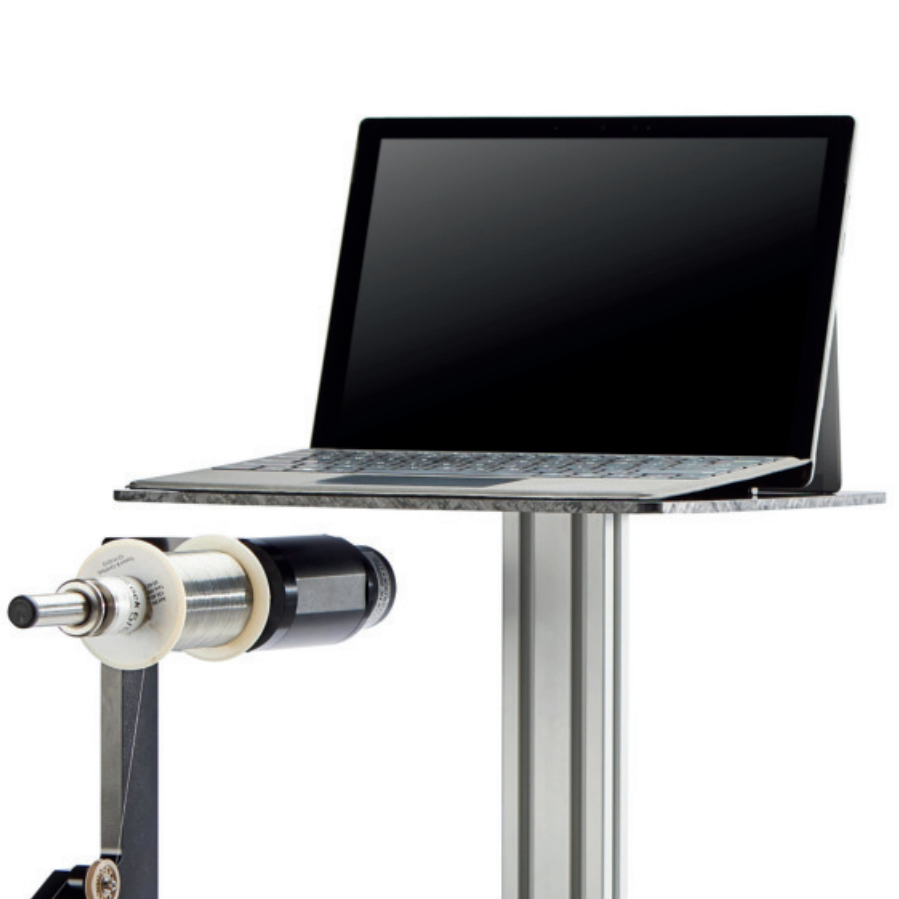

– Runs Off Any PC or Add on to Your Purchase
– Operating System: Microsoft Windows 10
– Wire Tensioning: Hysteresis Break
– Chuck Size: 1/16″, 1/8″
– Pneumatic Requirements: None
– Arbor Tensioning: Spring Tension
